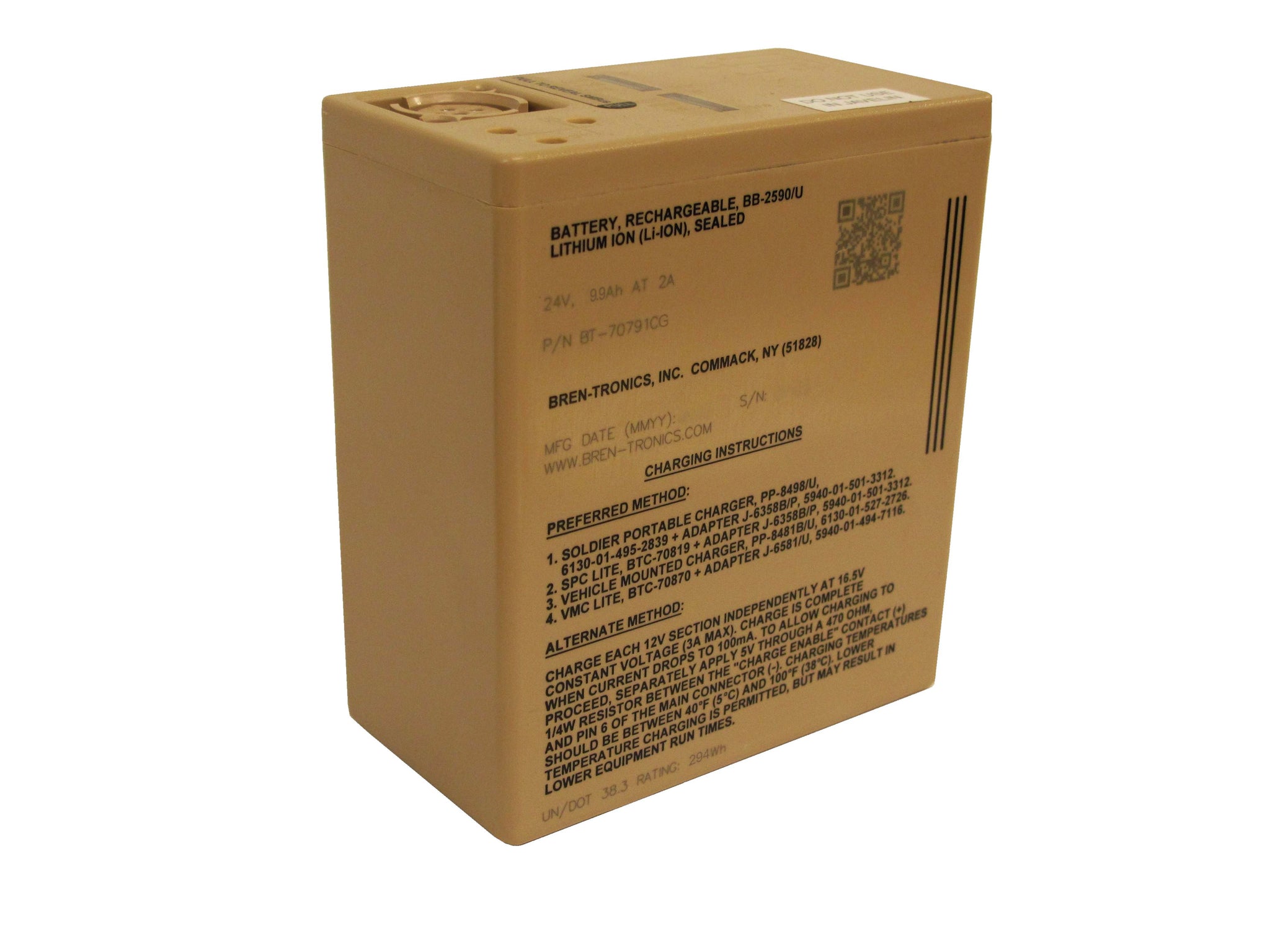

BB-2590 Battery for xFridge
SKU : 1028109.9 Ah, Rechargeable Lithium-Ion Battery
Typically used in over 71 different devices such as Communications gear
(SINCGARS, AN/PRC-117, etc.), Robots, and Jammers.
Designed to meet MIL-PRF-32052/1 with increased capacity.
Designed in the USA.
Nominal Voltage: 14.4V, 28.8V
Ah: In 24V Mode 9.9 Ah, In 12V Mode: 19.8
Maximum Voltage: 16.8V
Operating Temperature: -20°C to +60°C (-4°F to +140°F)
Storage Temperature: -40°C to +40°C (-40°F to +104°F)
Connector: Floating type per U.S. Army DWG # SC-C-179495
State of Charge Indicator: Yes
US Gov Spec: MIL-PRF-32052/1
Battery Type: Rechargeable
Smart Battery: SMBus
Dimensions Length: 4.4 in (112 mm) Width: 2.4 in (61 mm) Height: 5.0 in (127 mm)
Weight 3.1 lbs (1.4 kg)
Nominal Voltage 28.8V, Two (2) x 14.4V/Section
Maximum Voltage 33.6V, Two (2) x 16.8V/Section (supported chargers marked with *)
Capacity 9.9Ah in 24V Mode; 19.8Ah in 12V Mode
Discharge 10A Max Continuous / Section
Pulse Discharge 18A (5 sec ON/25 sec OFF) / Section
Operating Temperature –20°C to +60°C (-4°F to +140°F)
Recommended Storage Temperature –40°C to +40°C (-40°F to +104°F)
Connector 6 Pin Floating Type per U.S. Army DWG# SC-C-179495
State of Charge Indicator 2 Separate 5 Segment LCDs with Constant Display
Disposal Check local regulations (Contains 0% Mercury or Cadmium)
